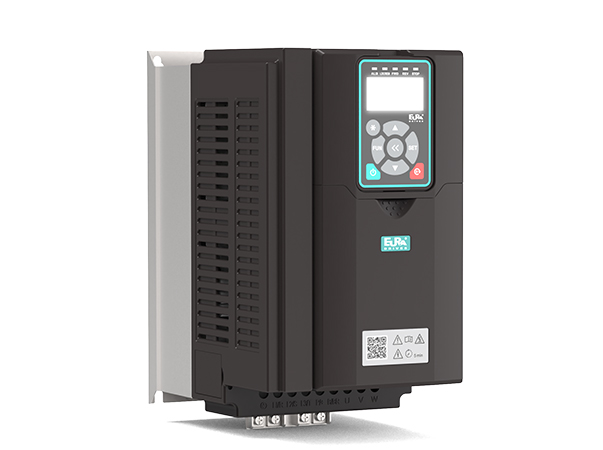

E3000 series

Product description

As the newest generation of high-performance vector inverters,E3000 series is adopted advanced control algorithm,modular structure,industrial design,various expansion cards and support fieldbus such as Profinet,EtherCAT,etc.Thanks to our new algorithm,E3000 has the advantage of better efficiency,fast dynamic response,high precision,and low noise.

Power range: 1-phase 110V～480V: 0.4kW～2.2kW;

                      1-phase 230V～480V: 0.4kW～2.2kW;

                      3-phase 230V～480V: 0.4kW～3.0kW;

                      3-phase 380V～480V: 0.4kW～500kW.

Product characteristics

• Advanced vector control technology enables more precise control and dynamic performance.

• Optimized current control further enhances high output torque at low frequency.

• Carrier frequency can be adjusted between 0.8 and 16 kHz.

• VVVF control, SVC control, and VC control for AC induction motors.

• SVC control and VC control for permanent magnet synchronous motors.

• Output frequency ranges from 0.50 to 590 Hz (V/F) and from 0.5 Hz to 500 Hz (SVC), with a resolution of 0.01 Hz.

• Automatic carrier adjustment, automatic voltage adjustment,rapid current limiting,speed tracking ,voltage and current stall adjustment,and continuous operation at temporary power failure.

• Protection functions: overload, over-current, over-voltage, input under-voltage, input/output phase loss, inverter over-heat, motor over-heat, etc.

● Parameter-copy stick

● LCD keypad panel, 5 - digit LED panel, and digital potentiometer.

● STO SIL2.

● Various expansion cards: digital I/O expansion, AI/AO expansion, PT100/PT1000 temperature sampling expansion, differential encoder/non - differential encoder expansion，resolver encoder, absolute encoder, Profinet, BACnet, EtherCAT, CANopen, isolated 485 expansion, etc.

● communication and programming by Type C port.

● Optional built - in filter.

Application industry

Oil and gas, mining, HVAC, water treatment, fan&pump, paper, wire drawing, stone cutting, plastic, mechanical transportation, etc.
